Fiber Optic Arrays

FiberTech Optica has developed capabilities to fabricate high precision linear, 2D and v-groove fiber arrays housed in common metals and polymers. For applications requiring fibers spaced apart with higher accuracy, we can also supply precision hole arrays machined in fused silica.  These components enable us to manufacture assemblies with fiber arrangements of practically unlimited complexity.

FiberTech Optica arrays use patented technology to offer unmatched tolerances on fiber positioning and centering. Deep understanding of mechanical and optical tolerances and their effect on final product performance, coupled with our experience in custom components allow us to achieve the high level of technical craftsmanship that sets us apart in our industry.

Features

  • Wide range of fiber types, sizes and materials
  • Custom substrate dimensions and geometry

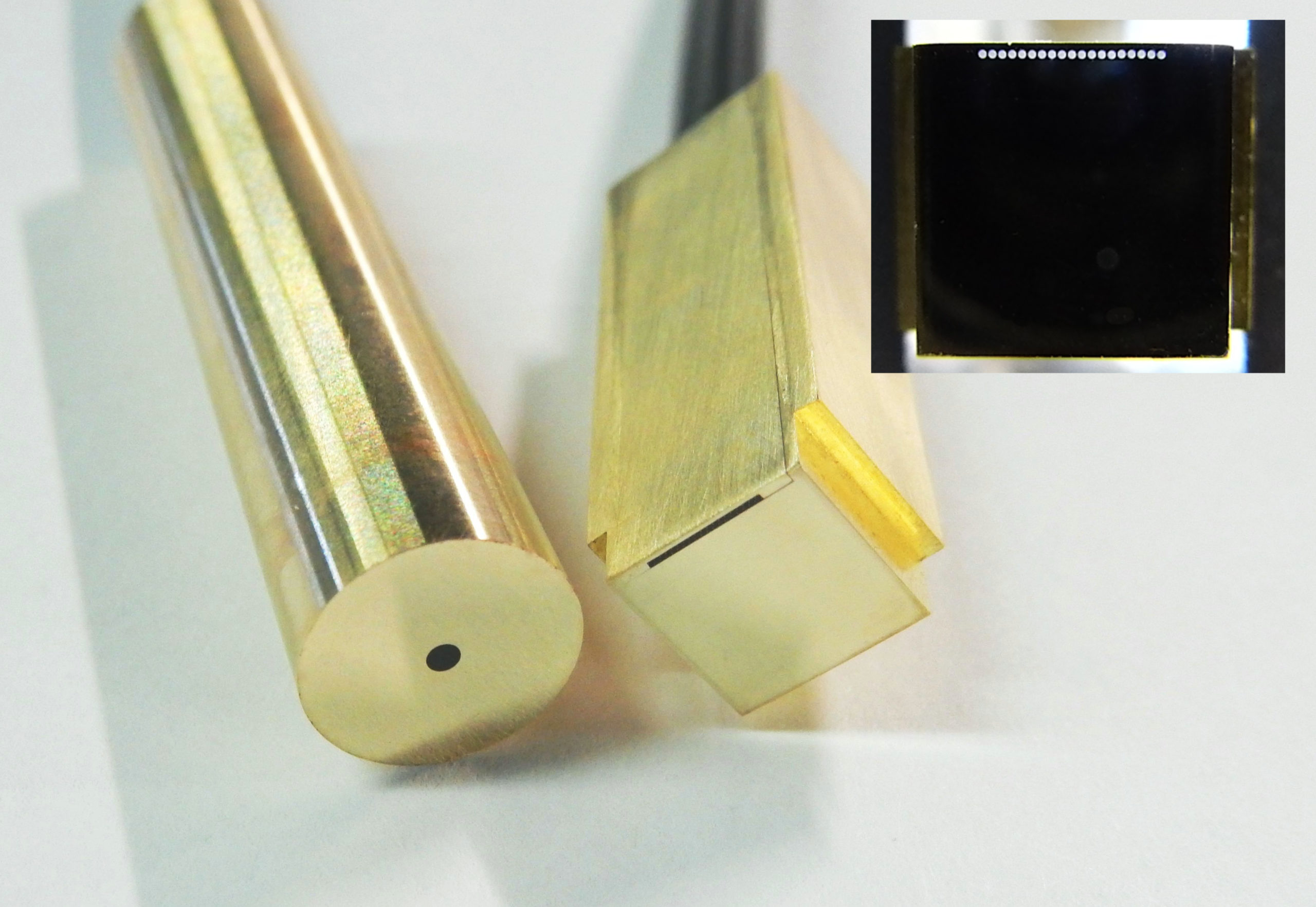

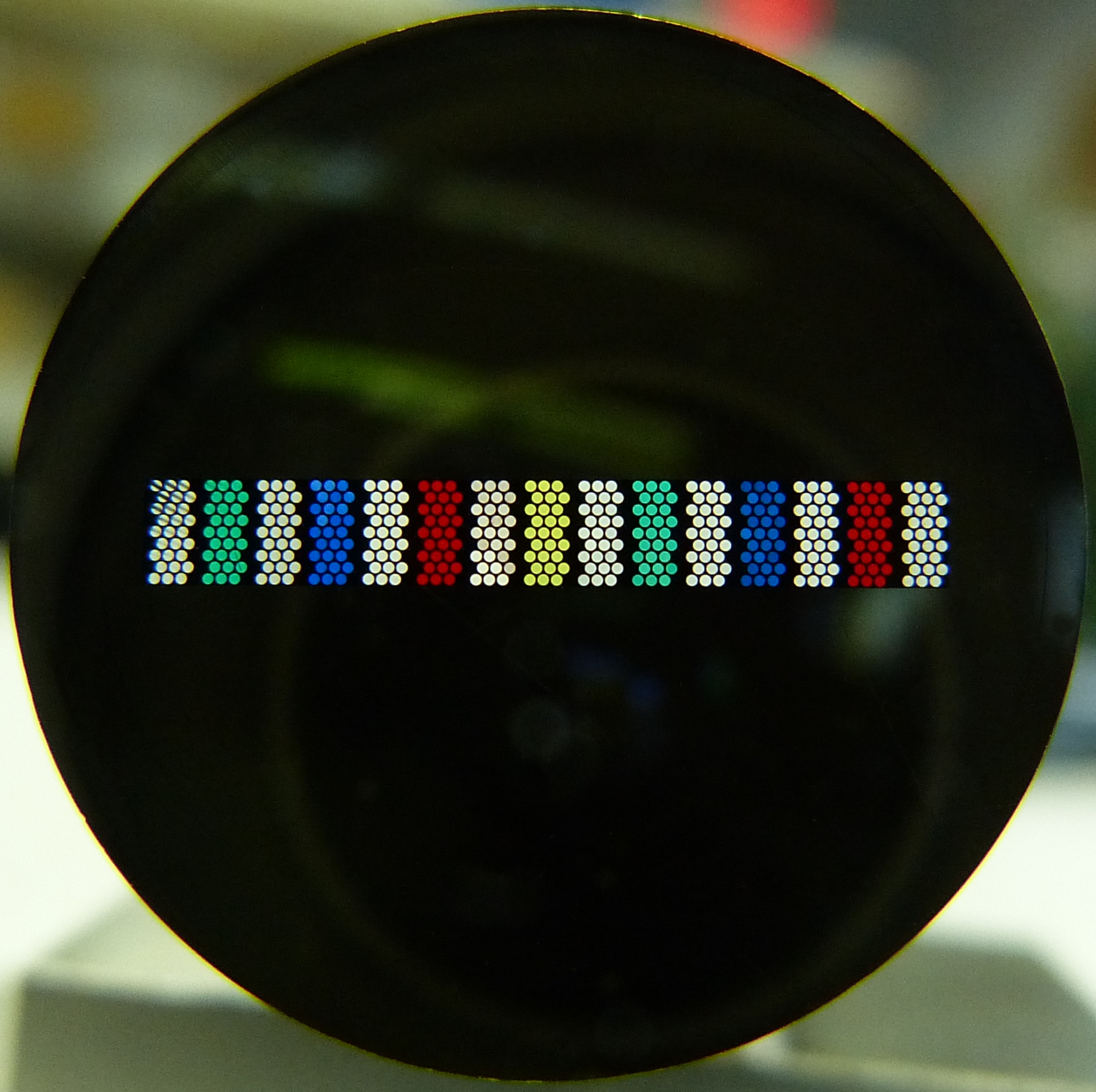

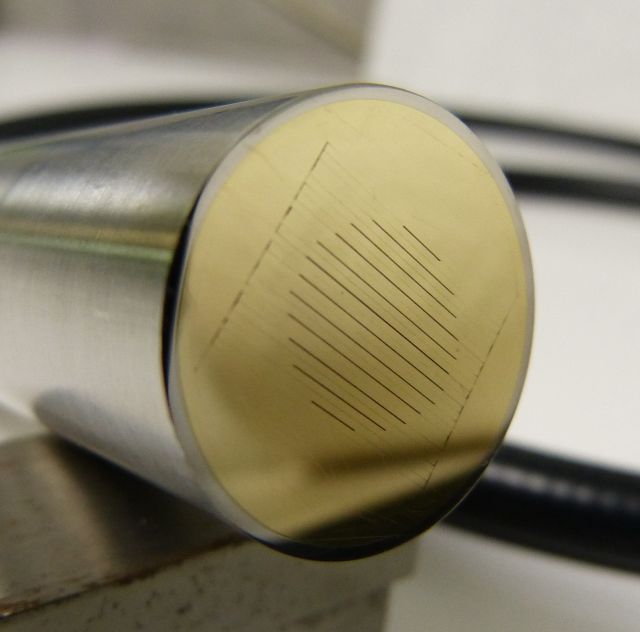

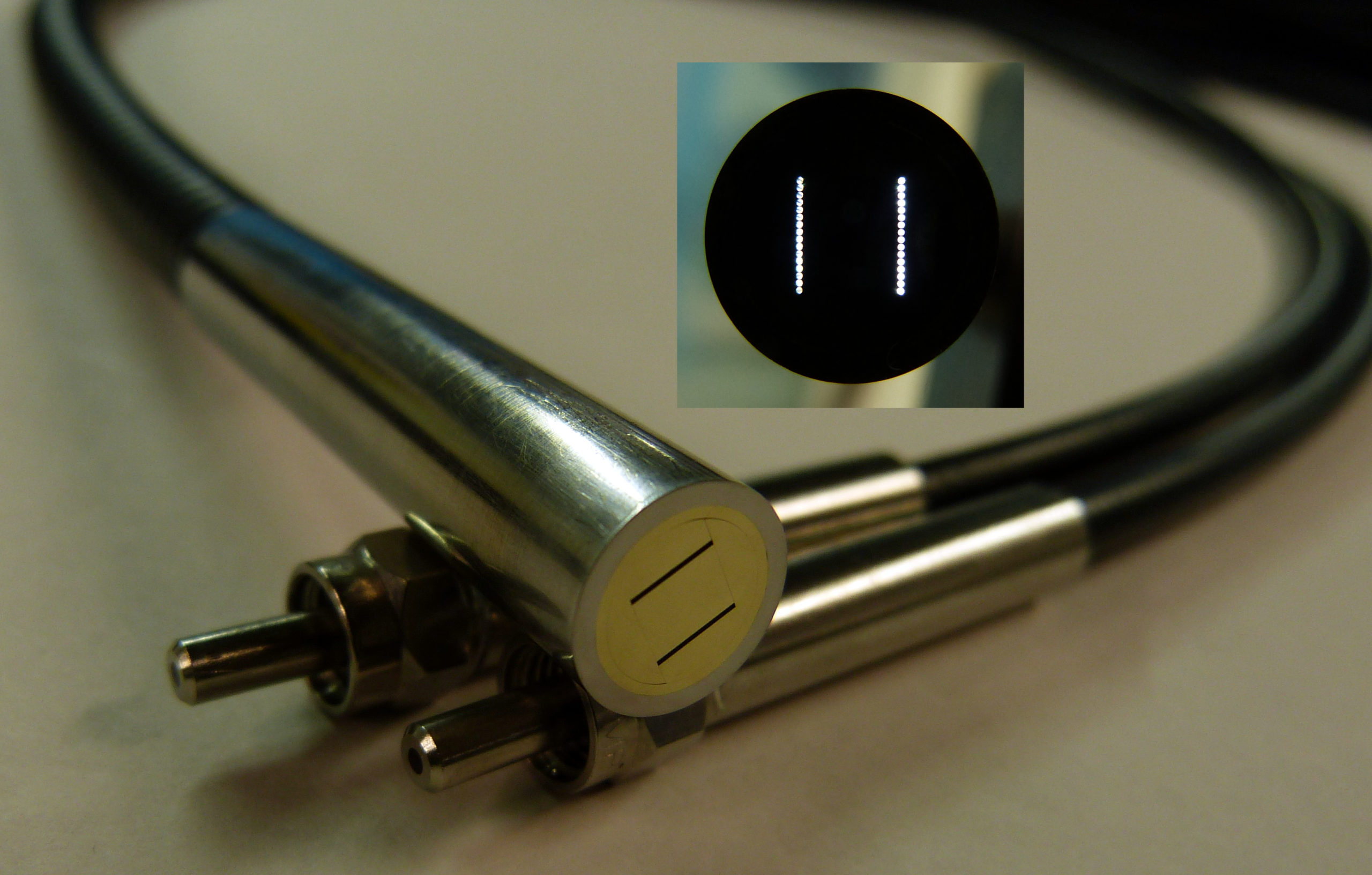

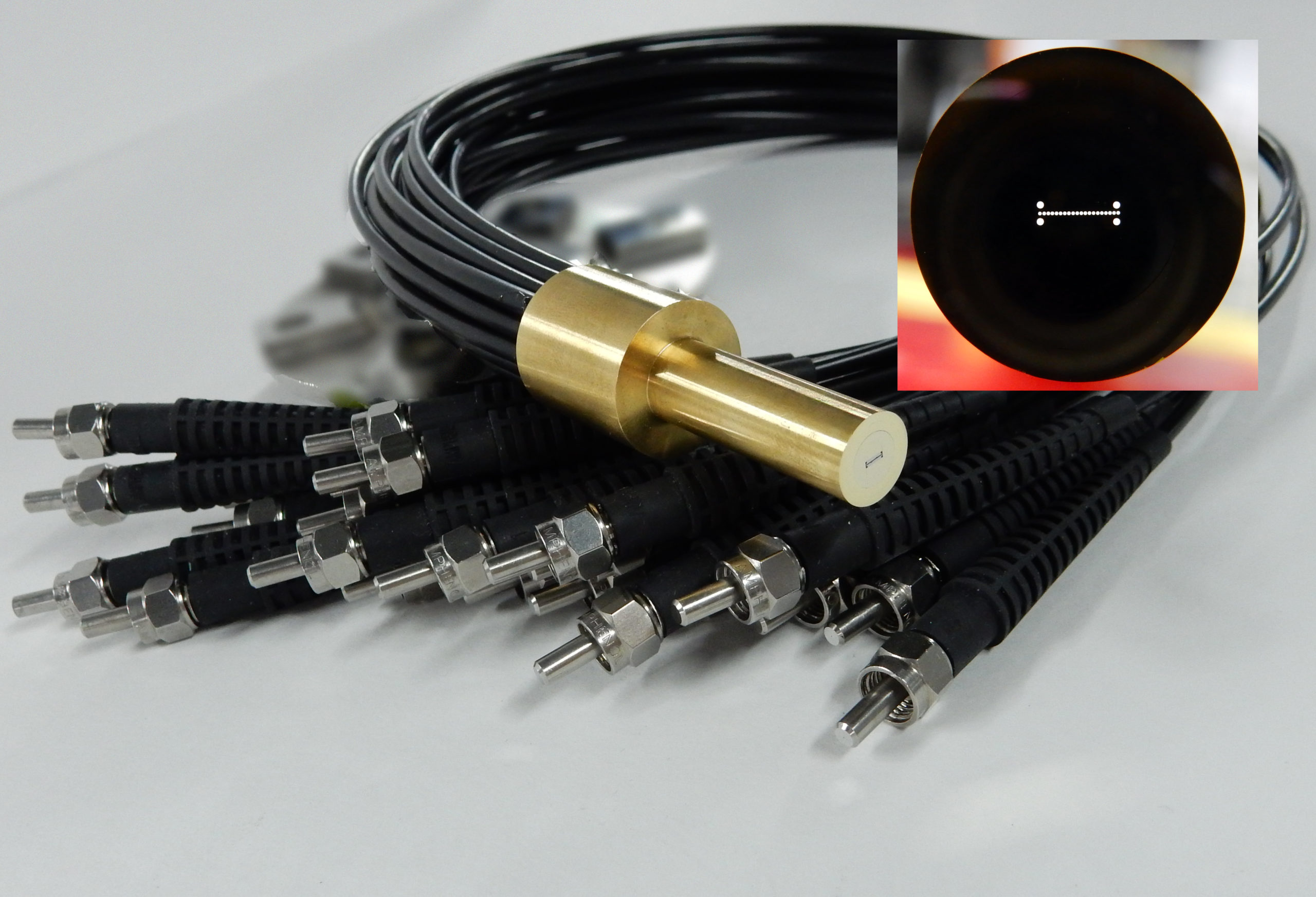

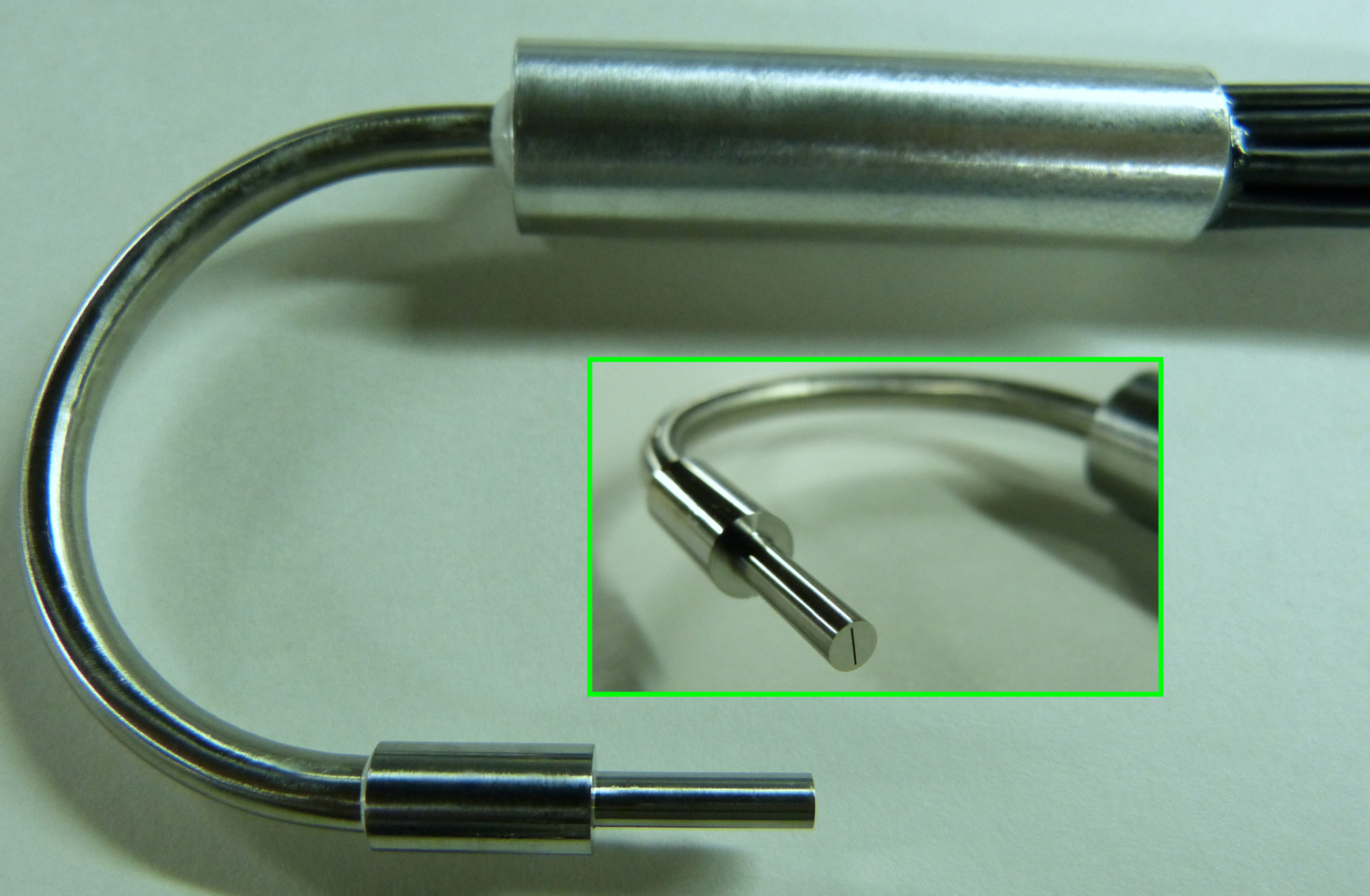

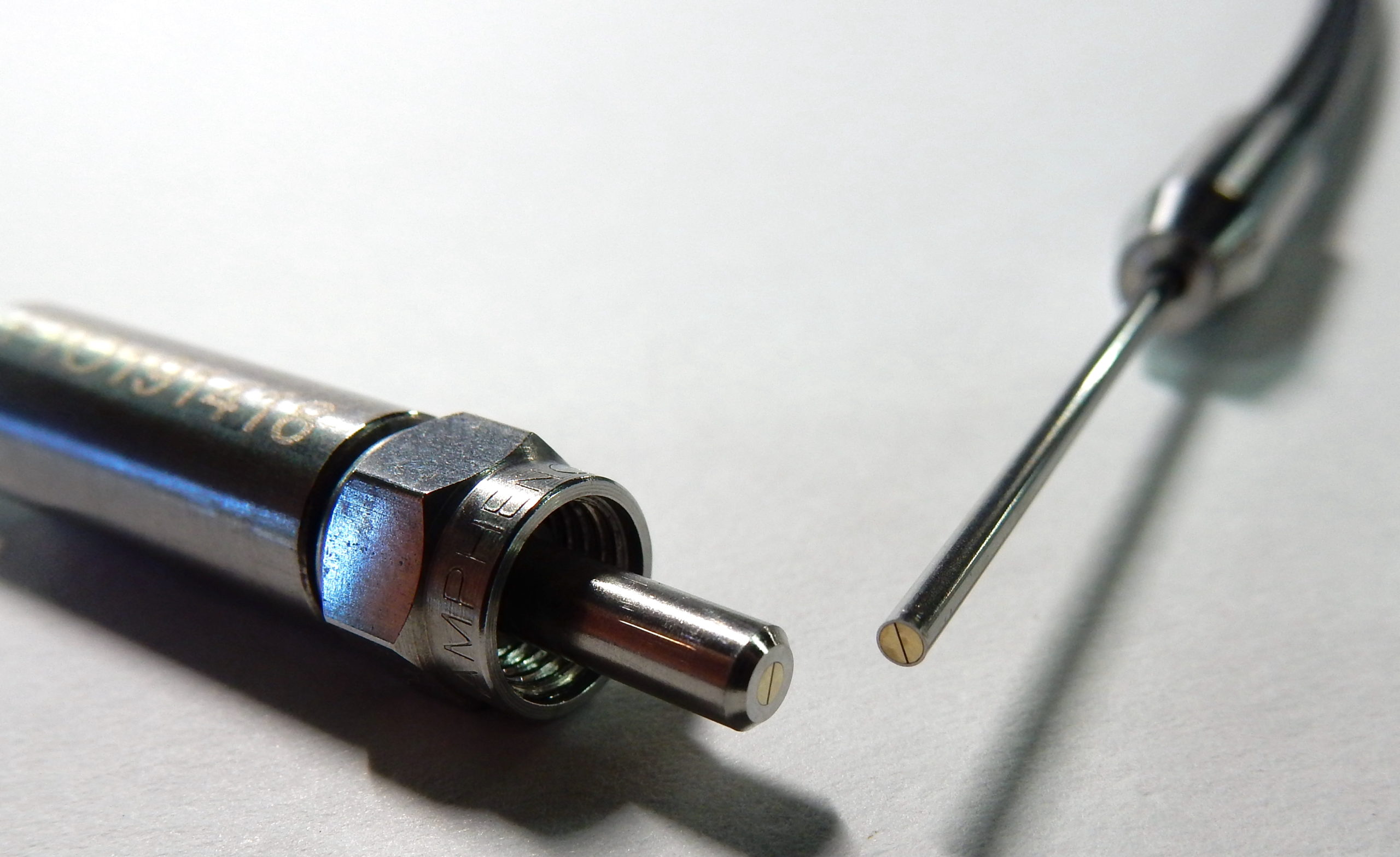

  • Single, multiple, segmented and curved lines

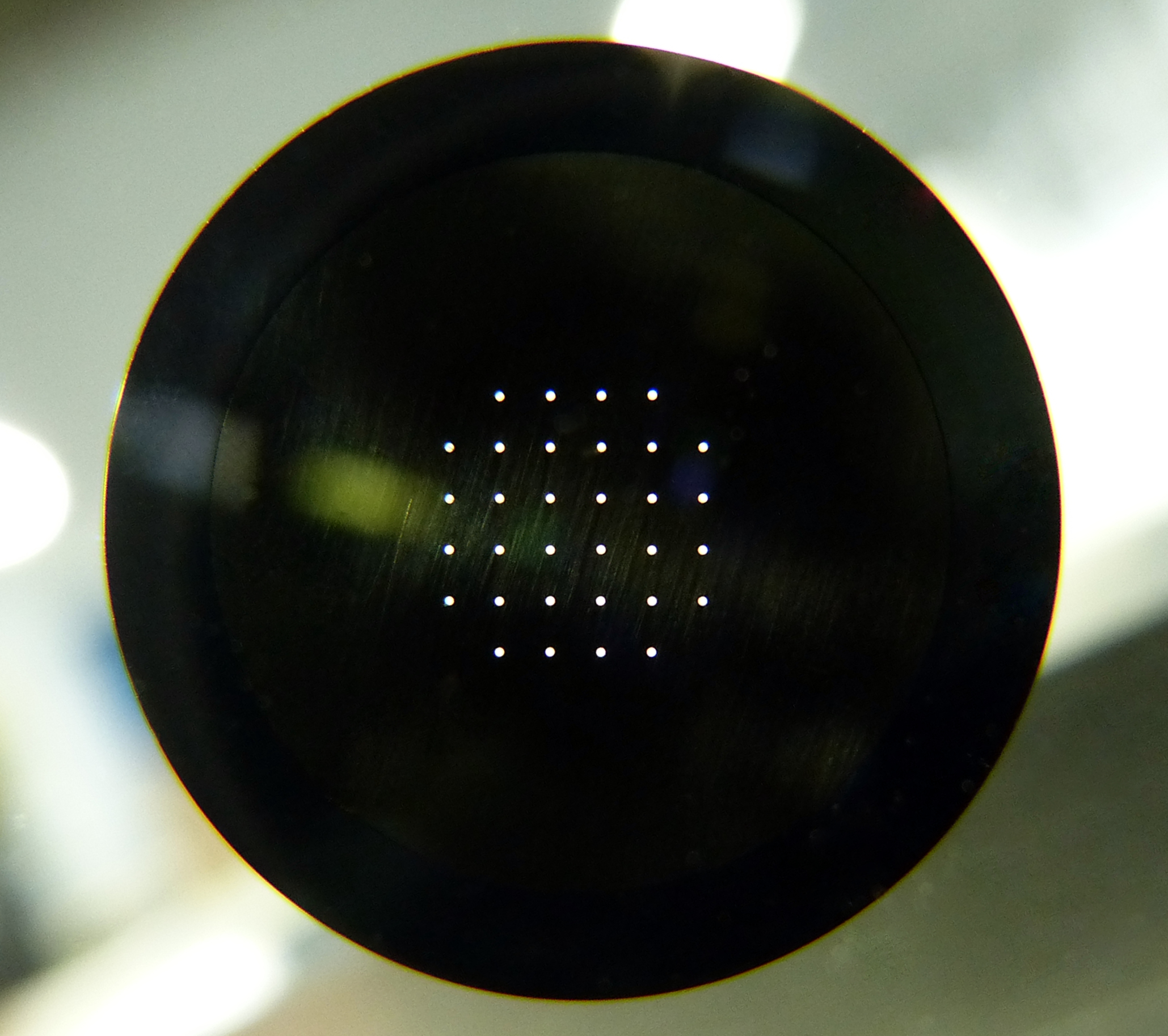

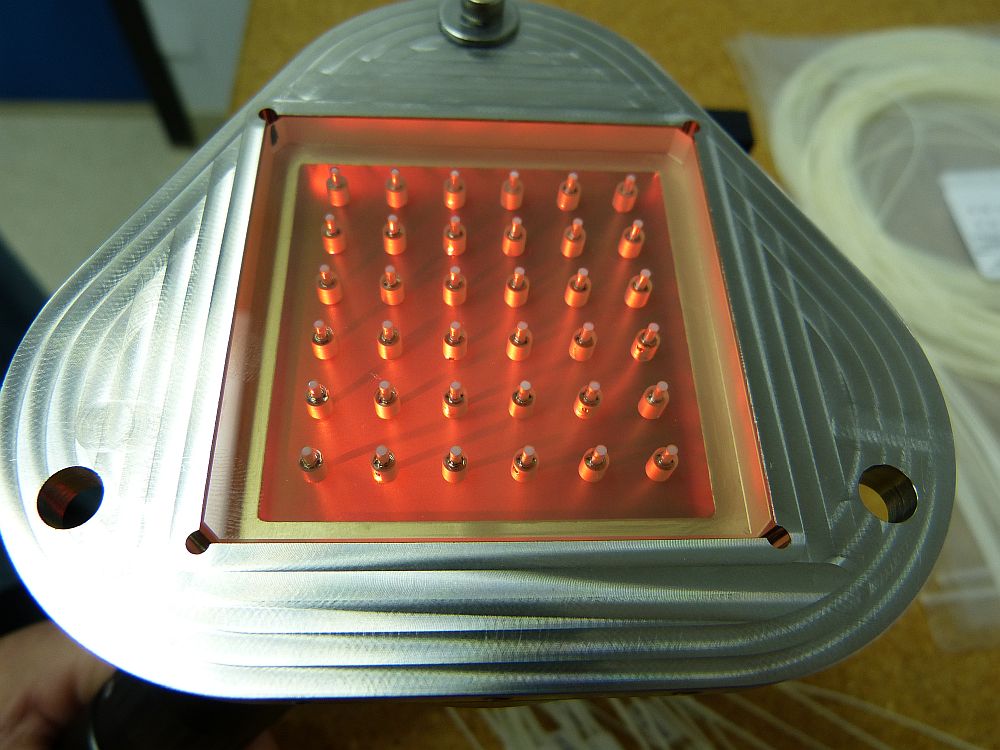

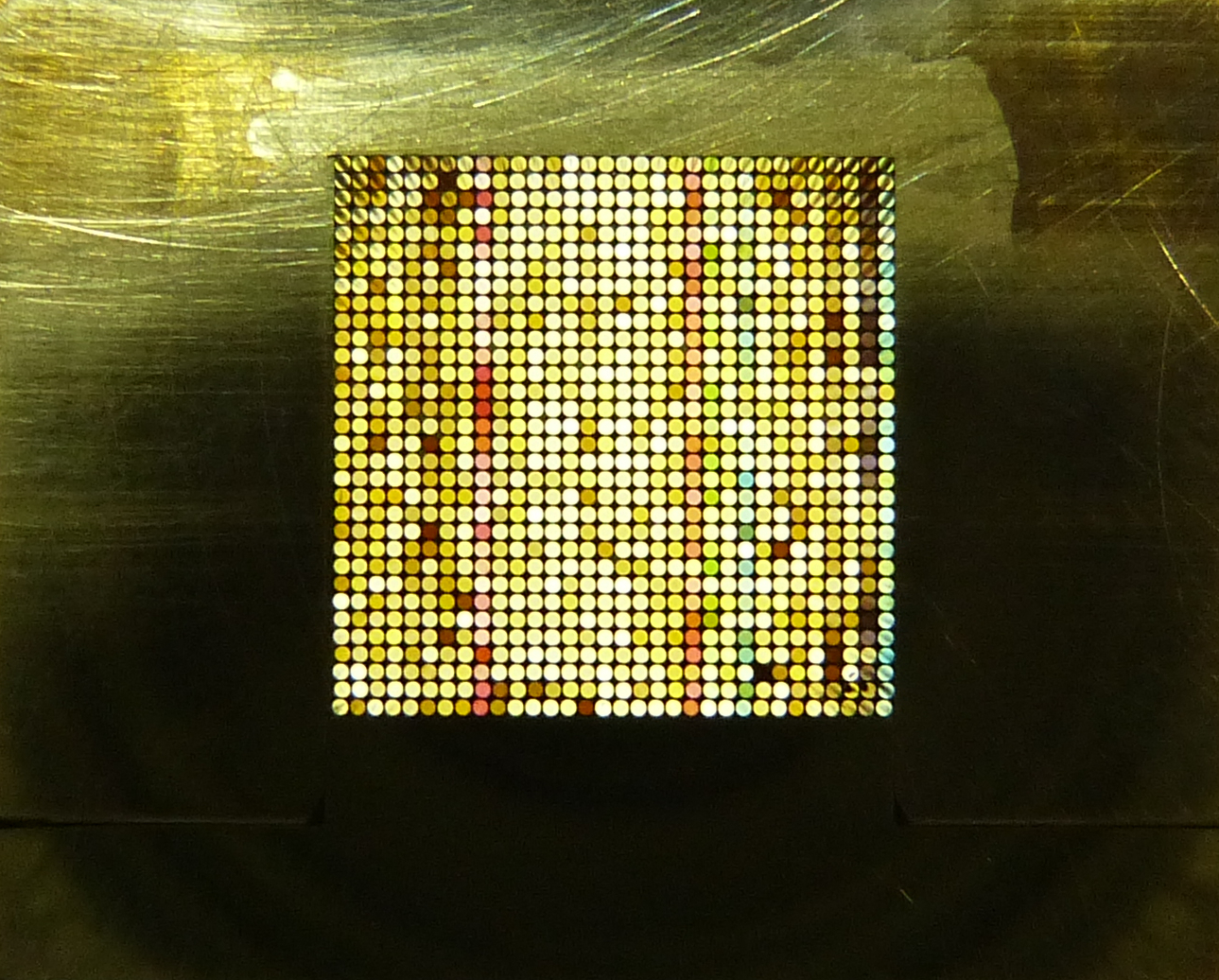

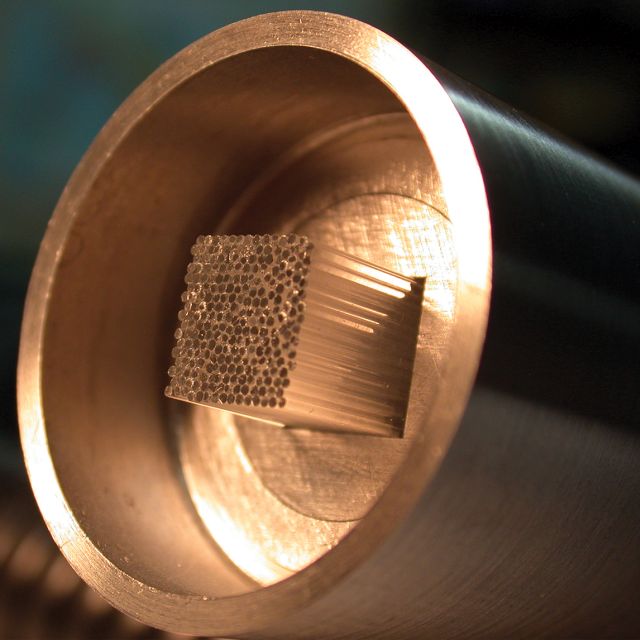

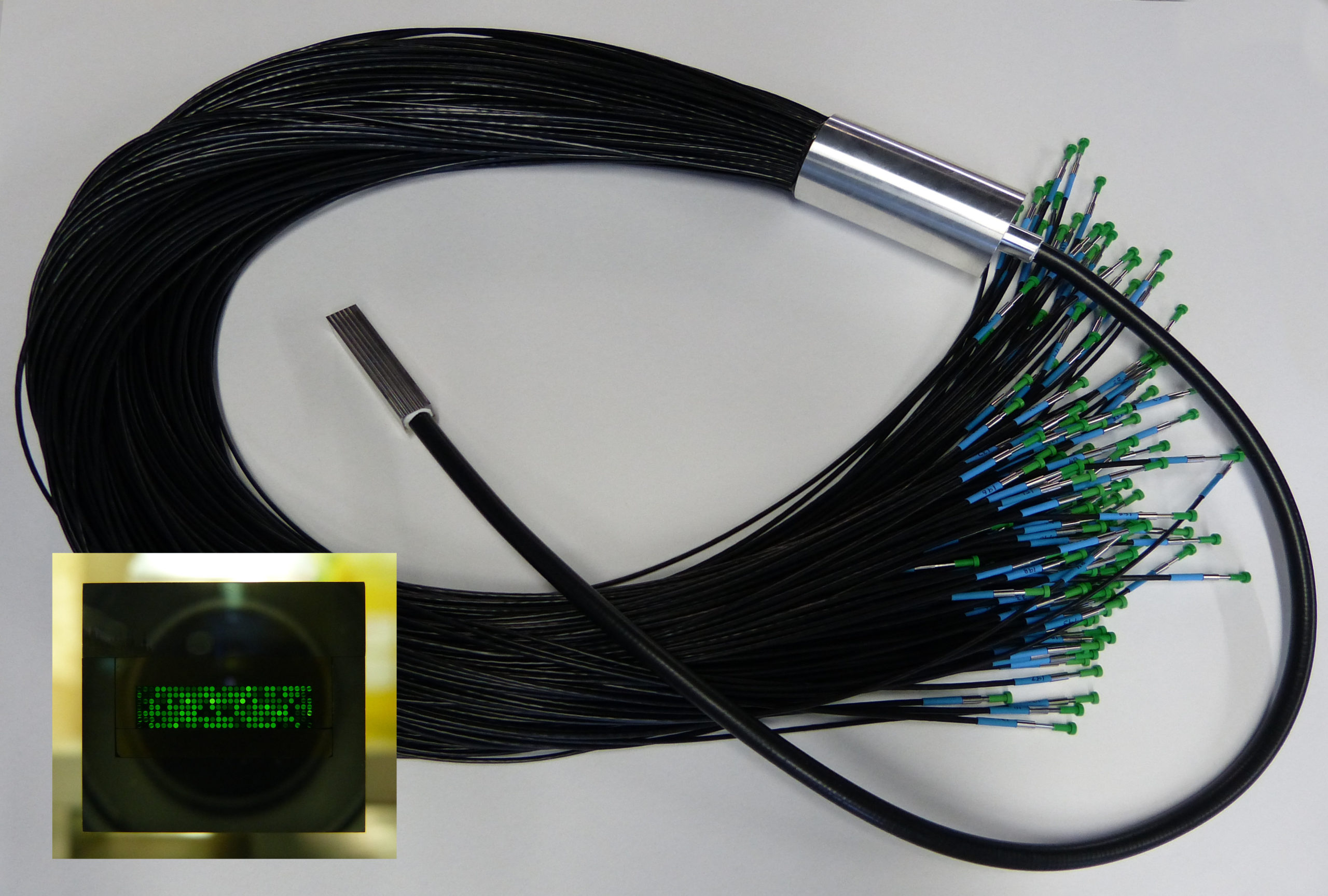

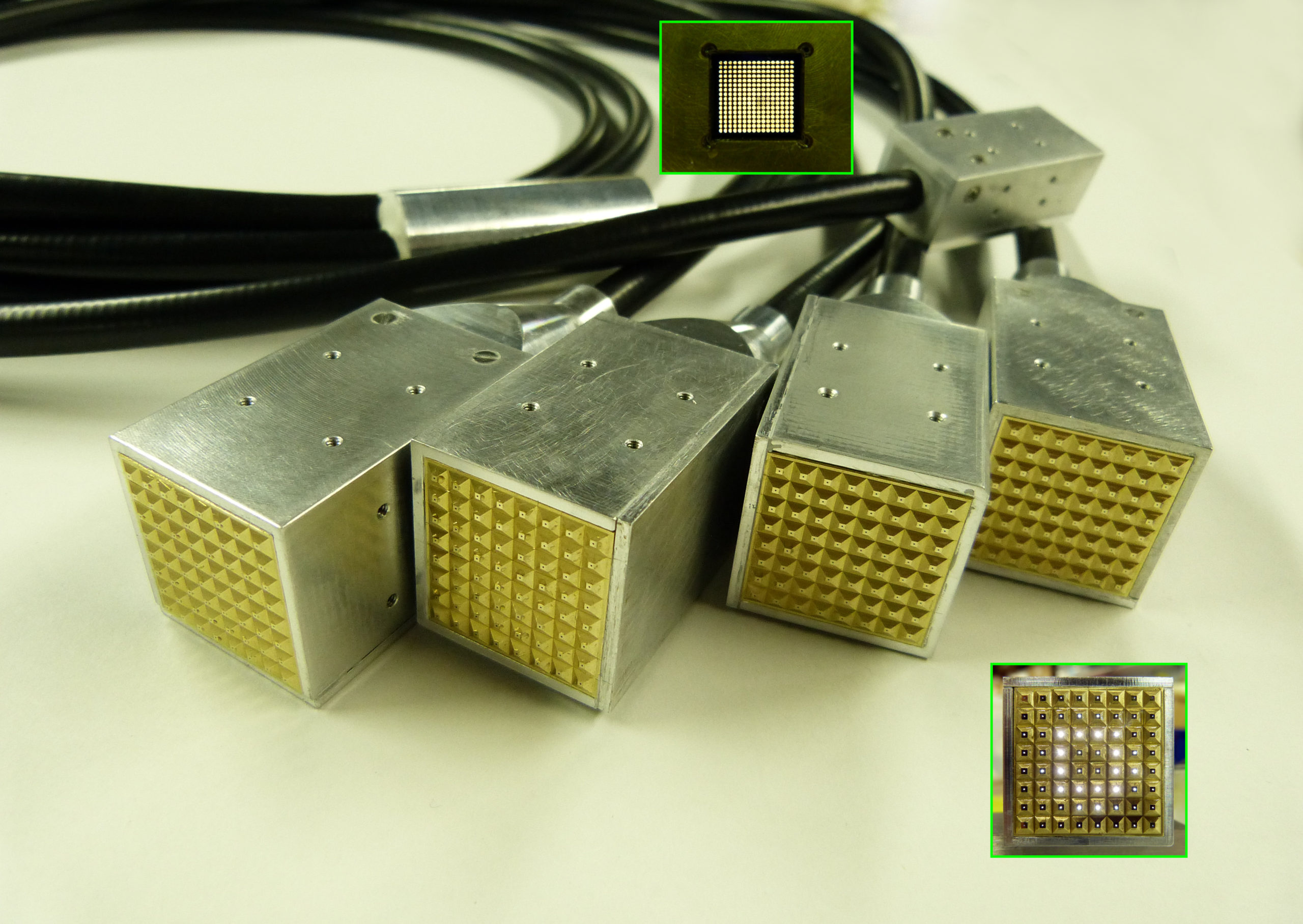

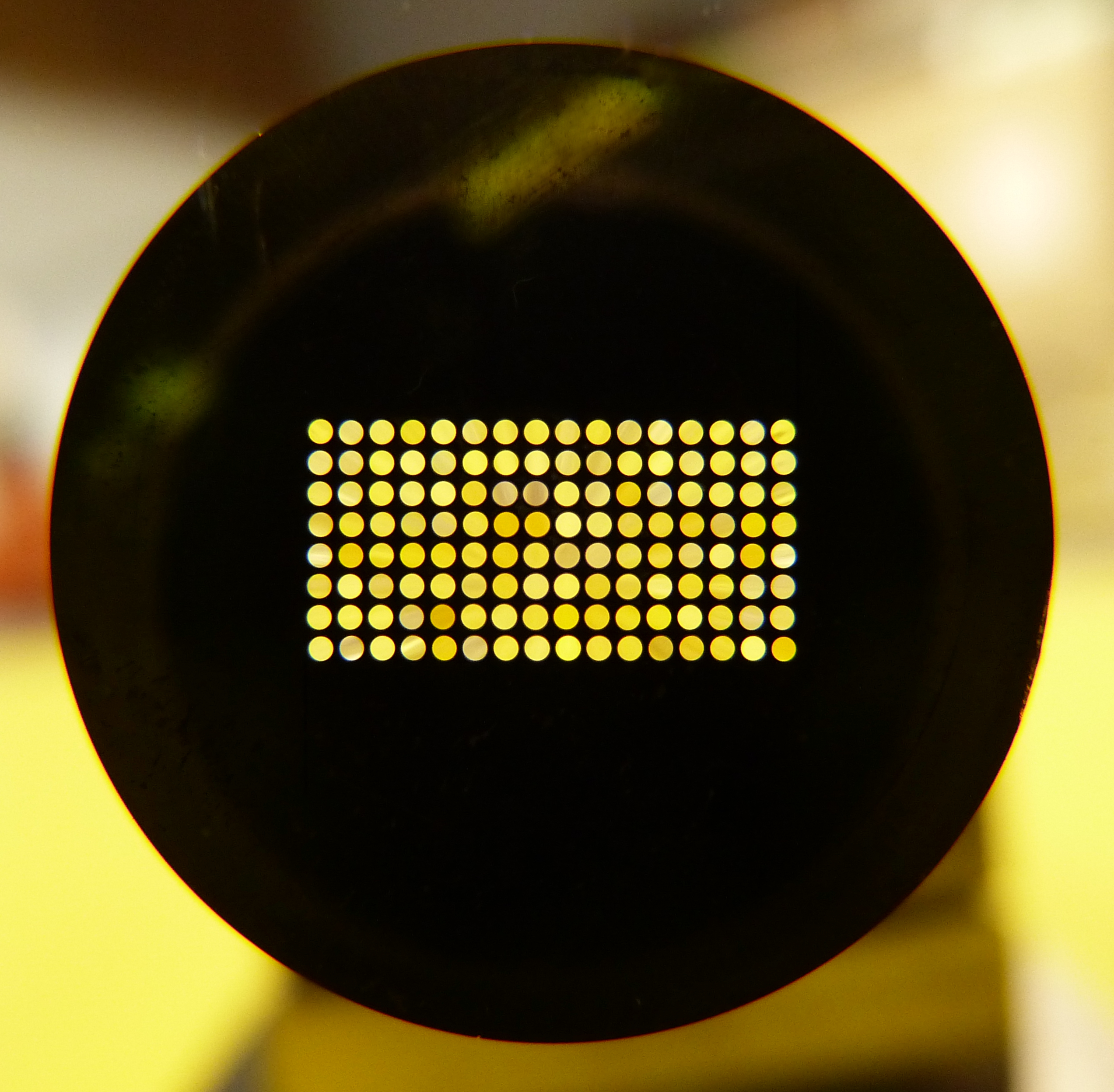

  • 2D arrays with packed or spaced fibers
  • Precision v-groove arrays
  • Custom spacing and depthsCustom hole spacings and sizes
  • Tight dimensional tolerances (< 2 um in some applications)
  • High hole aspect ratio with negligible taper
  • Thermal expansion matched to optical fibers
  • Integration of precision optical components and systems with optical fiber

Benefits

  • Fiber arrangements of practically unlimited complexity.
  • Improved match between the application and the solution provided through understanding of mechanical and optical tolerances and their effects on final product performance.
  • Innovative and cost effective fiber packaging solutions.

Applications

  • Spectroscopy
  • LIDAR
  • Sensing
  • Research and Development

Industries

  • Academia
  • Aerospace
  • Astronomy
  • Defense & Homeland security
  • Dentistry
  • Environmental monitoring
  • Fine chemicals
  • Food processing
  • Forensics
  • Life sciences
  • Biomedical imaging
  • Nuclear power
  • Petrochemicals
  • Pharmaceutical
  • Semiconductor
  • Solar energy
  • Fusion development
