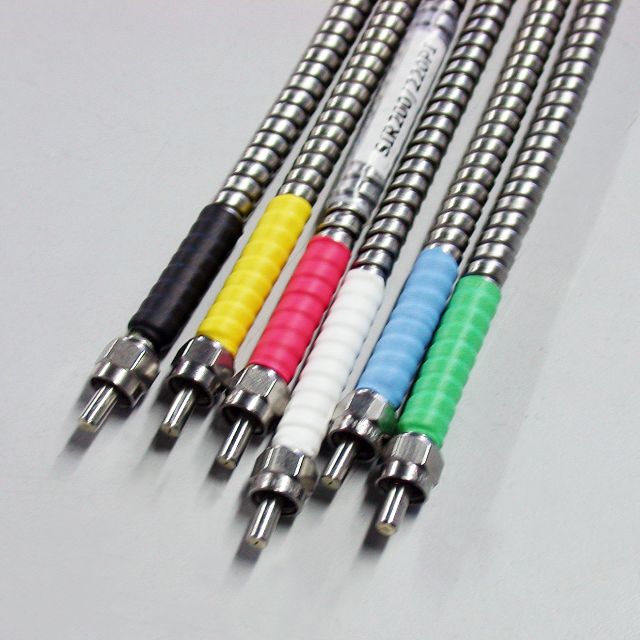

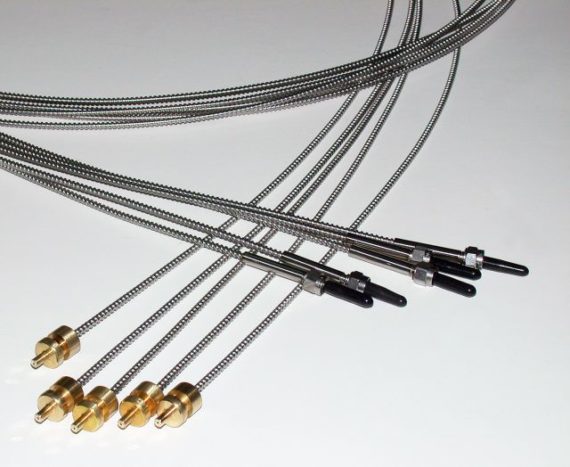

Fiber Optic Patchcords
FiberTech Optica manufactures custom single-fiber assemblies and patchcords engineered for demanding optical, mechanical, and environmental requirements.
Supporting standard interfaces including SMA-905, FC/PC, FC/APC, and ST, as well as custom ferrules and proprietary terminations, our assemblies are optimized for high coupling efficiency and seamless system integration.
Available from Deep UV to Mid-Infrared (MIR), FTO offers single-mode and multimode fibers with core sizes from 25 µm to 1800 µm and NAs up to 0.53.
With virtually unlimited assembly lengths and a wide range of jacketing and protection options, FTO delivers application-specific fiber solutions built for reliable performance in laboratories, industrial environments, aerospace, and advanced scientific applications.
Technical specifications of fiber optic patch cord
- Fiber materials: Fused silica, hard polymer clad silica, polymer clad silica, ZBLAN & indium fluoride and plastic (POF)
- Fiber type: Multimode step-index and graded-index fibers, singlemode fibers, polarization-maintaining fibers
- Numerical aperture (NA): 0.10 to 0.66
- Wavelength coverage: options spanning from Deep-UV to MIR (190 to 5500 nm)
- Length up to 1000 m (3000 ft)
- Up to three protective layers
- Standard (SMA-905, FC/PC, FC/APC, ST, etc.) or custom connectors, custom design ferrules
- Standard temperature range: -40 °C to + 100 °C; both cryogenic and high temperature
(up to 280 °C) available
Benefits of industrial fiber optic patch cords
- Flexibility in instrumentation design
- Greater flexibility in plant layout
- Increased reliability and reduced downtime
Industries using fiber optic patch cord
- Spectroscopy
- Process control
- Petrochemical
- Aerospace
- Military
- Academia
- Research labs
- Laser power delivery
Fiber optic patch cord applications
- Link measurement equipment to process sampling
- Deliver light to where it is needed
